Direct granules extruder

The video about the direct granules extruder


Prototypes

Direct granules extruder, shredded PLA
Figure 1:
Waste plastics has to be shred into granules. The size of the granules is an important property of the raw material for an extruder. Here I have shred PLA using a blender. PET from old plastic bottles is another source of material that is currently part of my first test series.
Direct granules extruder, first prototype
Figure 2:
With a first prototype I checked if my simple constuction works and it obviously does.
Direct granules extruder, 3mm treaded rod
Figure 3:
In an early experiment, I used a commercially available 3mm screw in the metal tube of the standard hotend. In the 4mm bore hole there is no space left for a Teflon tube. The whole thing worked, but only with very fine granules, which are hard to make from old plastics.
Fine grinding sugar is an easy job. I will check whether this extruder is good for printing that material.

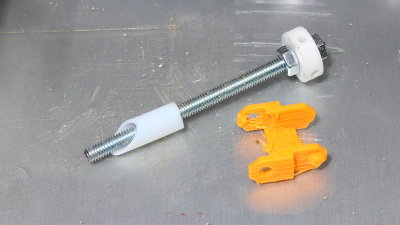

Direct granules extruder, 6mm threaded rod
Figure 4:
With a 6mm threaded rod in a Teflon tube with an inner diameter of 8mm I could process clearly larger granules. However, the result did not really convince me.
Direct granules extruder, DIY screw conveyer, copper wire
Figure 5:
The smaller the diameter, the better the mechanical "transmission":
The smaller the volume of granules moved per revolution of the extruder screw, the better you can control the flow of plastics coming out of the nozzle. With 0.5mm copper wire wrapped on a 3mm screw in a Teflon tube with 5mm inner diameter, the results were pretty good.

Current version

Direct granules extruder, 5mm Teflon tube
Figure 6:
I have achieved even better results with a 3mm wood screw in the 5mm Teflon tube. I have extended the screw with a piece of 3mm threaded rod - not perfectly centered, but it works. A piece of sheet metal on the conveyor screw acts as a granule stirrer which compacts the granules slightly before they enter the extruder - a simple component that has noticeably improved the printing results.
Direct granules extruder, Hotend
Figure 7:
The Hotend is made of a piece of 16x16mm aluminium. There are two holes for 2 heating cartridges. However, in my storage I have found a very powerful cartridge that does the job so that there was no need for a second one.
The drill holes for the heating cartridges have a diameter of 6mm, the hole for the nozzle is 5mm with a 6mm thread cut afterwards. The drill holes for the 3mm bolts (mount on cold end) have a diameter of 2.5mm with a 3mm thread. The hole for the temperature sensor has a diameter of 2mm.
Direct granules extruder, thermal insultaion hotend
Figure 8:
As a thermal insulation, I have wrapped the Hotend with 2 layers of special cardboard as used for engine gaskets - normal cardboard carbonizes at temperatures of 200°C and more. I was using exhaust-sealant to glue the insulation.
Direct granules extruder, cold end
Figure 9:
The Hotend is bolted to a second piece of 16x16mm aluminium using two pieces of 3mm threaded rod - this part is cooled by a fan.
Direct granules extruder, printed parts PLA
Figure 10:
The rest of the mechanics, including the hopper, is printed from PLA.
Direct granules extruder, power transistor bypass
Figure 11:
The tests were carried out on a Zonestar printer of the P802 series. The more powerful heating cartridge has "blown" the transistor for the hotend on the motherboard after a few minutes. As a bypass I am now using a MOSFET that can switch currents of up to 20A - that should be more than sufficient.

Parts

You can get the 3D files of the printed parts as Download package (1.2MB).

Sample prints

Direct granules extruder, sample print track chain with stringing
Figure 12:
The direct granules extruder is sensitive to stringing. With non optimal parameters you get visiple strings on your prints.
Direct granules extruder, sample print track chain
Figure 13:
First success! The white print is my reference, made with my Ender
Material: PLA
Dimensions: 27x25x12mm
Layer height 0.2mm
Print speed: 10mm/s
Movement without extrusion: 150mm/s
Temperature: 165°C
Nozzle diameter: 0.4mm
Filament multiplicator: 7.8
Retraction: 20mm (2mm extra length on restart)
Direct granules extruder, sample print track
Figure 14:
Track composed of a couple of sample prints.
