Direct granules extruder V5.3

The video about the Prusa MK4 conversion, part 3.

Figure 1:

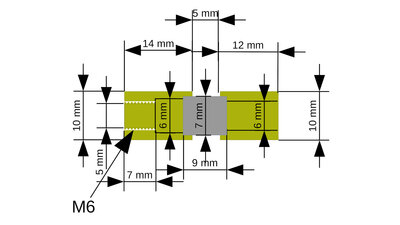

Dimensions of extruder tube 5.3

Figure 2:

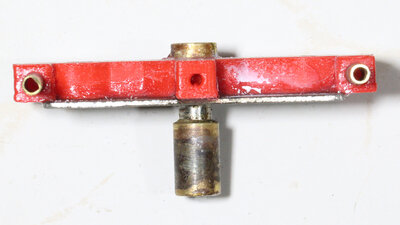

The changes made to previous version 5.2 are minimal.

Figure 3:

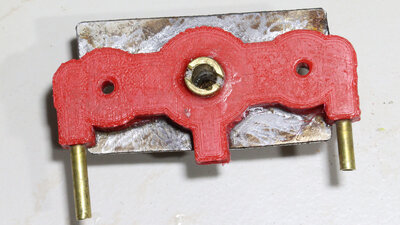

Only 2 screws are needed to mount the extruder tube on the hopper.

Figure 4:

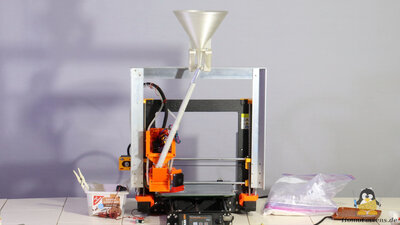

Details about the changes made to the printer frame will be published as soon as the Prusa MK4 conversion is finished.

All 3D files, the Open SCAD file and the dimensional drawing are part of the download package.

Figure 5:

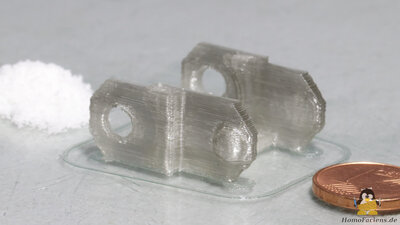

Track link:
Dimensions: 27x25x12mm

Figure 6:

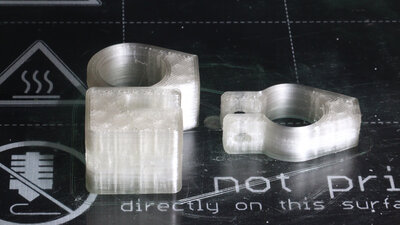

Mounts feeder pipes:

Figure 7:

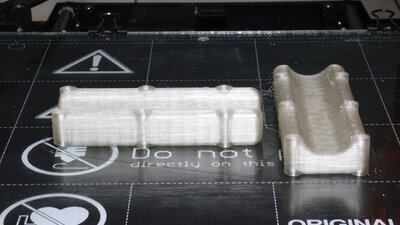

Cover of linear ball bearings on Z-axis:

Figure 8:

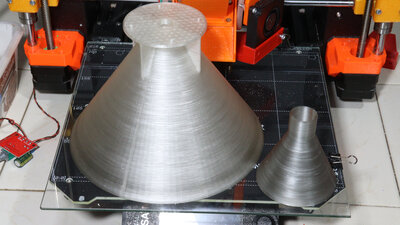

Right: Small cone (70x70x70mm
Left: Storage container 1L: 180x180x120mm
