Robot arm v0.1

The video about robot arm v0.1


Version 0.1

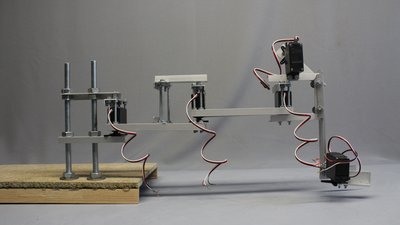

Robot arm v0.1
A parcel from RS components arrived. With a wooden base plate, aluminum angles and some screws, robot arm v0.1 is made of this stuff.

Parts list


Component Number RS Components Remark
Arduino Uno 1 715-4081
Standard servos 4 781-3058
Servo for continuous rotation (grab) 1 781-3046
Threaded rod M3 1 530-306
Threaded rod M10 1 530-343
Nuts M10 12 527-628
Nut + bolts M3 20   Mount of servo horns
Nuts + bolts M4 viele
Aluminum angle
Dimensions approximately:
10x10x1000mm
1mm thickness
1 681-687
Aluminum angle
Dimensions approximately:
20x10x1000mm
1mm thickness
1
Raspberry Pi 1 832-6274 Optional, you can control the robot arm with and Debian based Linux PC.
Touchscreen for
Raspberry Pi
1 899-7466 Optional, you can control the robot arm with and Debian based Linux PC.
Cables, washers, wooden base plate and so on.

Mechanics

Mechanics robotic arm v0.1
Figure 2:

Mechanics robotic arm v0.1
Figure 3:

Mechanics robotic arm v0.1
Figure 4:

Mechanics robotic arm v0.1
Figure 5:

Mechanics robotic arm v0.1
Figure 6:

Mechanics robotic arm v0.1
Figure 7:

Mechanics robotic arm v0.1
Figure 8:

Mechanics robotic arm v0.1
Figure 9:

Mechanics robotic arm v0.1
Figure 10:

Mechanics robotic arm v0.1
Figure 11:

Mechanics robotic arm v0.1
Figure 12:
If the wiring is done and the software is loaded to the Arduino, all joints should be arranged on a streight line and servo 4 should lift the hand to half the maximum height as soon as the Arm and Arduino get powered. If not, remount the servo horns to adjust the arm correctly.

Electronics

Electronics robotic arm v0.1
Figure 13:
5 servos and an Arduino Uno are needed for the electronics.
The 4potentiometers and the switch are optional. You those parts to compose a tiny robotic arm that can control the large robot as shown in the video.
An old computer power supply feeds the arm with electricity.

Software

You can get the software package in the column Download.
To be able to control the robot through the browser interface, you must ensure that Apache is running on your Raspberry Pi. The installation procedure is described in the "readme.txt" of the software package.
Instead of a Raspberry Pi you can also use any Linux computer with a USB interface and Apache. The installation procedure should be identical for all Debian based distributions.
